ST-10 automatic spray guns (Liquid circulation model )
●Liquid passage and Piston air room is independence type. You do not be worried about the liquid mixes with the air which is in the piston air room.
●With Precision Liquid volume adjuster pitch 0.5mm.
●Needle packing set used special material (PERFLOUR) which is solvent resistance and chemical resistance.
●Liquid circulation model with the slim needle for better liquid flow.
●Tube Fittings are not attached.
●Atomization is the same as ST-6 series.

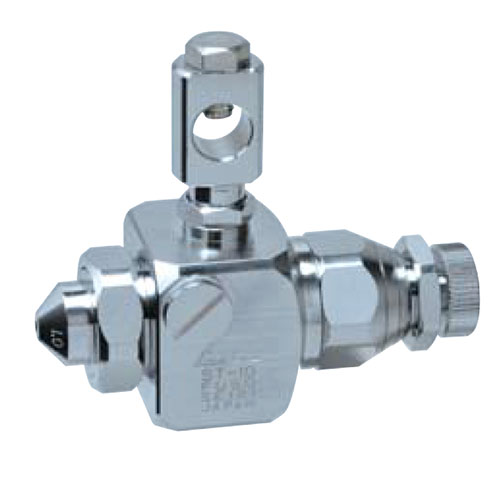

●ST-10 Both fan and round pattern
Standard model in ST-10 series.
Used for spraying paints and various kinds of machine oils with a lower air pressure so as to minimize oil scattering. By turning the Pattern Adjuster, the size of the Round to Fan (intermediate possible) pattern can be selected.

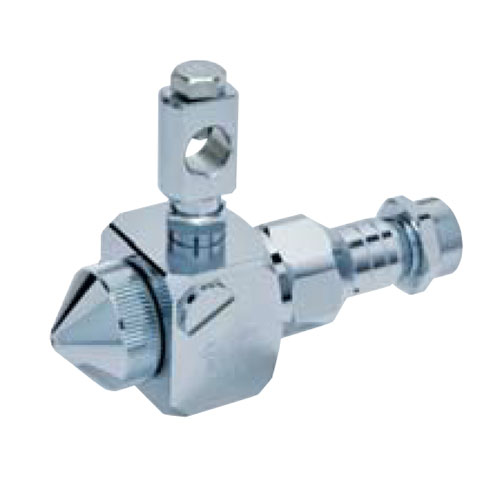

●ST-10SK small round pattern model
While spray distance is 5mm, it can spray the minimum round pattern about φ２mm.
Covering a spray angle of approx. 5°.
ou can coat a small narrow line by moving workpieces or automatic spray guns.

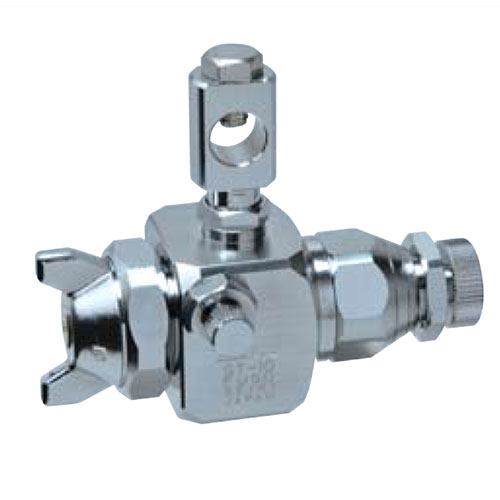

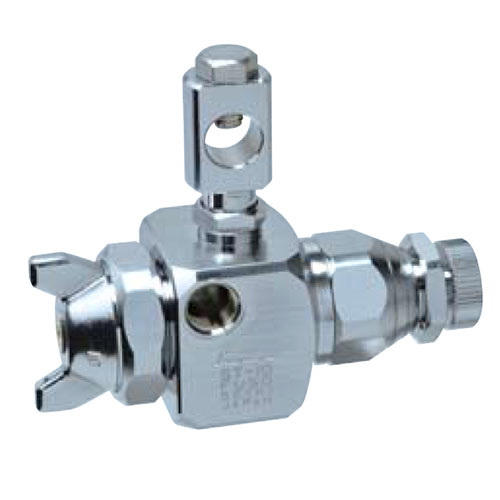

●ST-10W Wide-Angle fan pattern
It can spray as a fan pattern even spray a small amount of the liquid

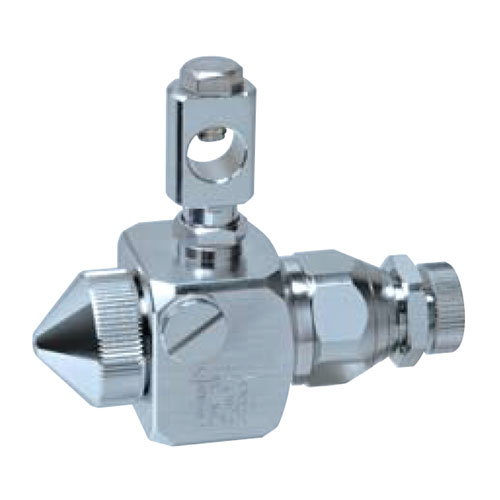

●ST-10R Round pattern
Covering a spray angle of approx. 15°.
Applied to use in marking and spray small workpieses.
●ST-10RW Wide-Angle Round spraying
Spiral air stream produces a fine granular mist, and is able to also paint or coat side walls (inside of a concave surface) as well as the bottom. Also, the spiral air stream helps prevent the Air Cap from becoming clogged.
※Fluid volume adjuster

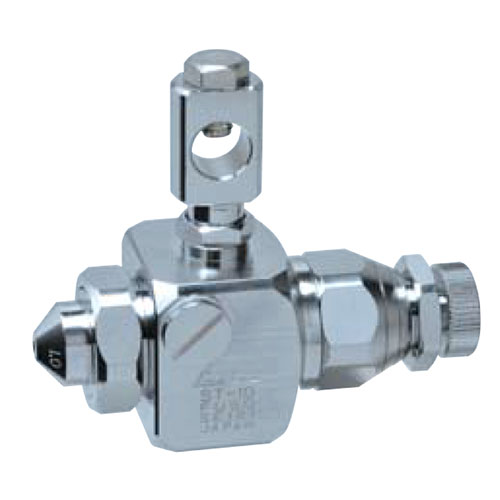

「G2」Fluid volume adjuster type (with lock mechanism)
This model G2 fluid volume adjuster can lock the degree that you need. It avoid loosening.

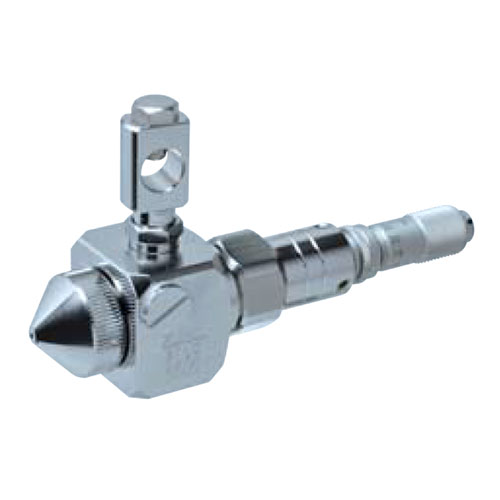

「MHS」Fluid volume adjuster type (micrometer)
Adjusting with a scale, this type offers in a high accuracy.
| Model | Spray pattern | Nozzle Orifice φmm |
Flow Rate ㎖/min |
Pattern width mm |
Particle size SMDμm |
Air consumption ℓ/min |
Mass g |
| ST-10 | Round、fan | 0.5 | 0～ 50 | 240 | 26 | 48 | 365 |
| 1.0 | 0～180 | 280 | 19 | 56 | |||
| 1.3 | 0～280 | 380 | 19 | 69 | |||
| 2.0 | 0～480 | 400 | 21 | 91 | |||
| ST-10SK | Small round pattern or narrow line |
0.5 | 0～ 45 | ※2～10 | 13 | 14 | 335 |
| 1.0 | 0～100 | ※2～10 | 12 | 34 | |||
| ST-10W | Wide-angle fan |
0.5 | 0～ 60 | 300 | 13 | 93 | 355 |
| 1.0 | 0～200 | 340 | 12 | 105 | |||
| 1.3 | 0～320 | 400 | 12 | 147 | |||
| ST-10R | Round | 0.5 | 0～ 50 | φ 80 | 16 | 29 | 330 |
| 1.0 | 0～200 | φ100 | 16 | 38 | |||
| 1.3 | 0～300 | φ130 | 16 | 42 | |||
| 2.0 | 0～550 | φ140 | 16 | 62 | |||
| ST-10RW | Wide-angle round spiralling spray stream |
0.5 | 0～ 86 | φ100 | 16 | 54 | 330 |
| 1.0 | 0～240 | φ130 | 16 | 70 | |||
| 1.3 | 0～450 | φ160 | 17 | 82 | |||
| 2.0 | 0～650 | φ170 | 17 | 88 |
※The values in the above table are results obtained through tests under the following conditions:
Fluid : water
Input fluid pressure : applied from a one meter height with a Gravity Feed Container
Maximum Pattern Width : Measured at a 300 mm distance from the tip of spray nozzle
Input Air Pressure : 0.1 MPa
(If the input air pressure is 0.29 MPa, the value will be the same as ST-5 series.)
※ The pattern width value of ST-5SK is under the following conditions :
liquid volume :1.5 ml/min, spray distance from 5 to 20 mm.
※ The model ST-10, ST-10R, ST-10RW, ST-10W are measured at spray distance 200mm, flow rate 30 ml/min, atomizating air 0.1 MPa.
And ST-10W is measured at pattern air 0.25 MPa.
※ST-10SK : minimum spray pattern measured at flow rate 1.5 ml/min, spray distance 5 to 20mm.
Particle size SMDμm measured at spray distance 200mm, flow rate 10 ml/min，atomizating air 0.1MPa.
