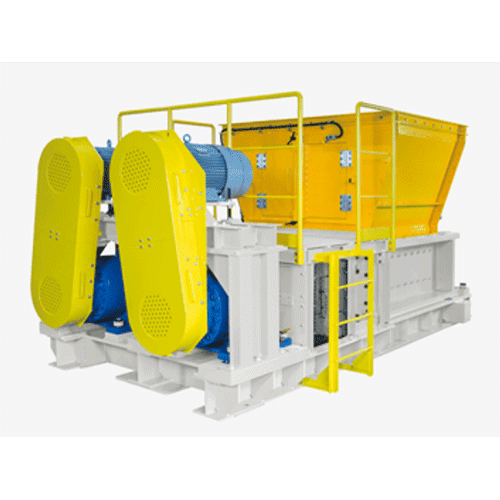

ENDO KOGYO Large Biaxial crusher
EC30W, EC42W, EC56W, EC65W series.

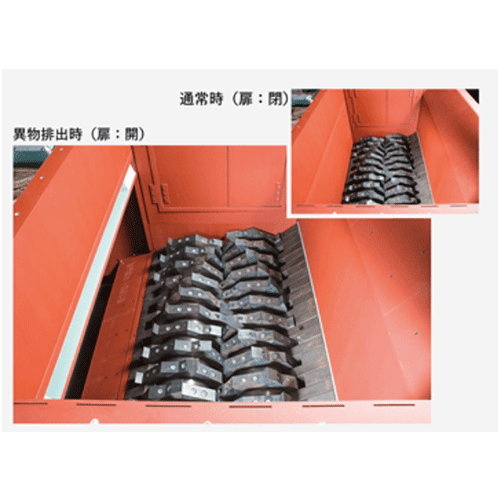

●Product life in long and the segment cutter brings high cutting ability.
●Reliable : Over-load mechanism.
While crushing is over than the capacity, the machine will reverse at once and restart to crush again.
●Various models are available.The width of Crushing room is 800 to 2000mm.
Refer to the capacity and crush materials, the users can meet their needs.
●Kinds of options are available. Please feel free to contact us.
●Lots of sales performance in Japan. We can arrange your waste for crushing test.
| Model | EC30W-80 | EC42W-80 | EC56W-100 | EC56W-150 | EC65W-100 | EC65W-150 | |
|---|---|---|---|---|---|---|---|
| Motor (kW) |
15×1 11×1 |
15×2 | 30×2 | 55×2 | 55×2 | 75×2 | |
| Crushing room (mm) |
Width | 806 | 840 | 1060 | 1510 | 1510 | 2030 |
| Deepth | 590 | 865 | 1115 | 1115 | 1280 | 1280 | |
| segment cutter (mm) |
φ300×50 | φ420×60 | φ565×75 | φ565×75 | φ650×75 | φ650×75 | |
| Numbers of segment cutter |
16 | 112 | 112 | 160 | 160 | 216 | |
