Air Transformer.
Enables stable pressure regulation to maintain the required pressure.
Enables stable pressure regulation to maintain the required pressure.
The air transformer is an economical compact air cleaner with an air regulator built in it.
Air Transformer
Model Connect Type of
drain		 flow
rate
ℓ/min		 Max pressure
in Primary
Mpa		 Pressure
aadjust range
in secondary
MPa		 Max working
temperature
（fluid）
℃		 rated filtration
RR-AP48 PF 1/4 manual 780 1.4 0.05～1.13 80 20μm
FR-102CMG Rc 1/4 manual 180 1.0 0.04～0.83 65 20μm
RR-A PF 1/4 manual 780 1.0 0.05～0.78 80 20μm
RR-AS PF 1/4 manual 780 1.0 0.05～0.78 80 20μm
RR-AT PF 1/4 manual 780 1.4 0.05～1.13 80 20μm
RR-AP4B type: The right outlet (viewed from the front) supplies non-regulated air pressure from the air tank, and the left outlet supplies regulated air pressure indicated by pressure gauge.
FR type: Compact type that is easy to install

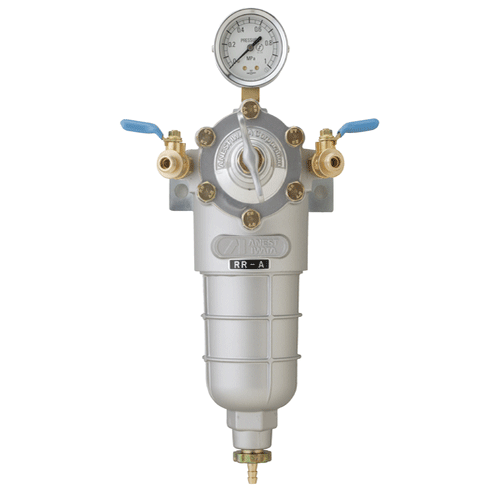

RR-A type: The right outlet (viewed from the front) supplies non-regulated air pressure from the air tank, and the left outlet supplies regulated air pressure indicated by pressure gauge.
RR-AS type: Both outlets supply regulated air pressure, leading to increased efficiency.
RR-AT type: For high pressure use (1.0 MPa or higher)

Note：Air flow in primary side is 0.69MPa, and it is 0.49MPa in secondary side.
Besides, pressure drop is 0.05MPa.
