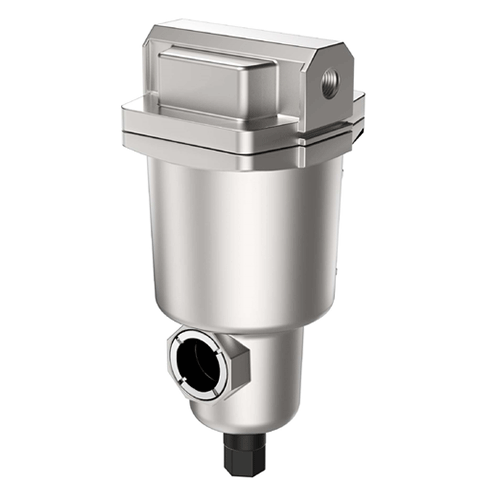

Small-size filter ALF/ASF/AMF Series
A solid foreign substance, oil, and bad smell delete.
Effectively removes moisture and dust from compressed air to make the air clean.
Various models are available from which you can choose for the intended application.
・The filter is made of metal ball material and has high solvent resistance.
・All the models are capable of dealing with 1.4 MPa (except ALF800-10(D)).
・An easy-to-operate auto drain is used (except ALF800-10).The manual-type filter has an easy-to-operate rotary-type drain cock.
Model | Connection | Drain | Flow rate at 0.7MPa ℓ/min |
Flow rate at 1.0MPa ℓ/min |
Flow rate at 1.4MPa ℓ/min |
Filter μm |
Work pressure MPa |
Mass kg |
ALF800-10 | Rc1/4 | Manual | 800 | 900 | - | 5 | 1.0 | 0.45 |
ALF800-10D | Rc1/4 | Auto | 800 | 900 | - | 5 | 1.0 | 0.45 |

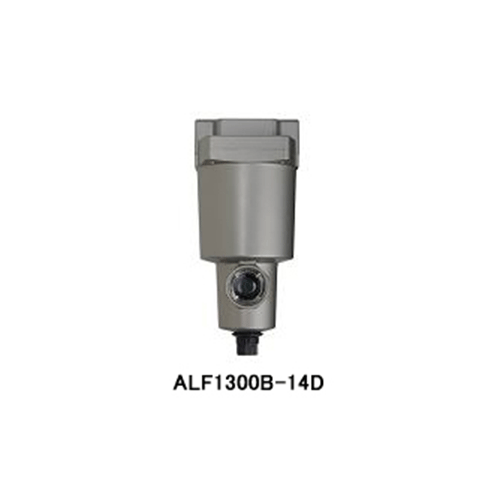

ALF1300B-14D | Rc 3/8B | Auto | 1300 | 1700 | 2400 | 3 | 1.4 | 0.9 |
ALF2000B-14D | Rc 1/2B | Auto | 2000 | 2700 | 3700 | 3 | 1.4 | 1.4 |
ALF3000B-14D | Rc 3/4B | Auto | 3000 | 4100 | 5600 | 3 | 1.4 | 2.1 |
Model | Connection | Drain | Flow rate at 0.7MPa ℓ/min |
Flow rate at 1.0MPa ℓ/min |
Flow rate at 1.4MPa ℓ/min |
Filter μm |
Work pressure MPa |
Mass kg |

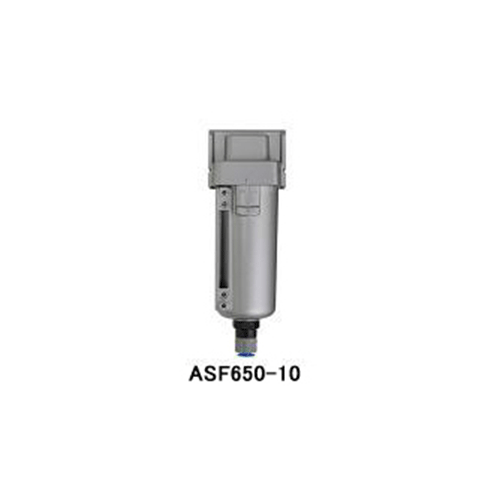

ASF650-10 | Rc1/4 | Manual | 650 | 730 | - | 0.3 | 1.0 | 0.44 |
ASF650-10D | Rc1/4 | Auto | 650 | 730 | - | 0.3 | 1.0 | 0.44 |

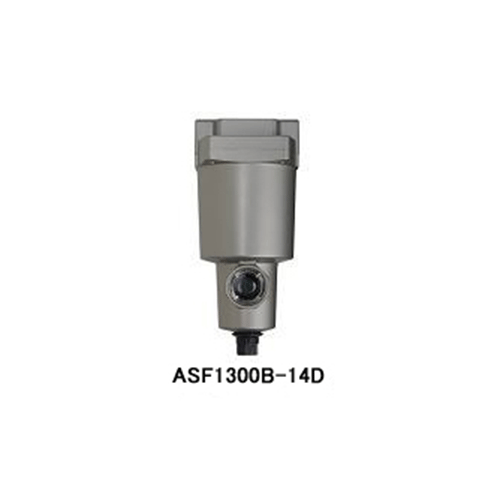

ASF1300B-14D | Rc 3/8B | Auto | 1300 | 1700 | 2400 | 0.3 | 1.4 | 0.9 |
ASF2000B-14D | Rc 1/2B | Auto | 2000 | 2700 | 3700 | 0.3 | 1.4 | 1.4 |
ASF3000B-14D | Rc 3/4B | Auto | 3000 | 4100 | 5600 | 0.3 | 1.4 | 2.1 |
Model | Connection | Drain | Flow rate at 0.7MPa ℓ/min |
Flow rate at 1.0MPa ℓ/min |
Flow rate at 1.4MPa ℓ/min |
Filter μm |
Work pressure MPa |
Mass kg |
AMF500-10 | Rc1/4 | Manual | 500 | 560 | - | 0.01 | 1.0 | 0.44 |
AMF500-10D | Rc1/4 | Auto | 500 | 560 | - | 0.01 | 1.0 | 0.44 |

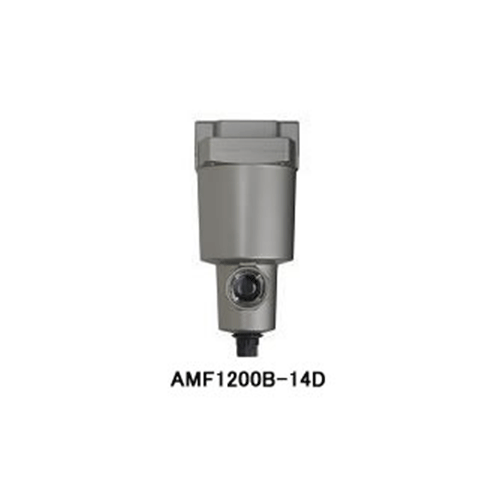

AMF1200B-14D | Rc 3/8B | Auto | 1200 | 1600 | 2200 | 0.01 | 1.4 | 0.9 |
AMF1750B-14D | Rc 1/2B | Auto | 1750 | 2400 | 3200 | 0.01 | 1.4 | 1.4 |
AMF3000B-14D | Rc 3/4B | Auto | 3000 | 4100 | 5600 | 0.01 | 1.4 | 2.1 |
